Manly SOW
Ceilings
• PB Ceilingso 13mm Suspendedo Butt into existing at some sections after demolition works by otherso P50 shadowline• FC Ceiling – entry vestibuleo 9mm FC set and sand• Bulkheadso As Per plan• Bulkhead above Operable Wallo As per detail on the Plan 311 Stud Frame with 2 x 13mm RE + Insulation to both sides 2nd layer on top of ceiling under bulkhead to Wall Track (by others)• Grido Existing Grid to remaino Re-Level Grido Armstrong 600x600 Dune Max W4980S 600x600x20mm Tegularo Lighting plan shows lots of full tile lights and some downlights• Insulationo All Ceilings to have Bradford Gold Batts R3.0 or equilavent• Patchingo Allowed 1 man 8 hours for make good to the job
Walls
• W1o 76mm Studo 2 x 13mm REo 1 x 13mm REo Bradford Acoustiguard 75mm 11kg/m3• W2o 76mm Studo 2 x 13mm SOUNDBOARDo 1 x 13mm SOUNDBOARDo Bradford Acoustiguard 75mm 11kg/m3• W5o 76mm Studo 2 x 13mm SOUNDBOARDo 1 x 9mm VILLABOARD – tile finisho Bradford Acoustiguard 75mm 11kg/m3• Skirtingso 100mm high aluminium skirting black anodised – black infil tape• Plyo 1200mm high plywood strengthening as per floor plan – about 11m2• Standoff Wall – ending to long grazed wallo 200mm wide x 3100mm to ceilingo 2 layers of 18mm MDF sandwiching 3mm wavebar• Hob Wall kitchenetteo 1200mm high, lined one side with CFC and MDF Sill• Entry Versibule (EX.CFC)o Existing Lightweight Wallso Lining to be removed by otherso Bradford Acoustiguard 75mm 11kg/m3o 9mm CFCo 2 x 13mm RE• Entry Versibule (EX.PB)o Existing Lightweight Wallso Lining to be removed by otherso Bradford Acoustiguard 75mm 11kg/m3o 2 x 13mm REo 1 x 13mm RE
Insulation
• Walls - Bradford Acoustiguard 75mm 11kg/m3• Ceilings - Bradford Gold Batts R3.0 or equilavent
Glazed Partitions

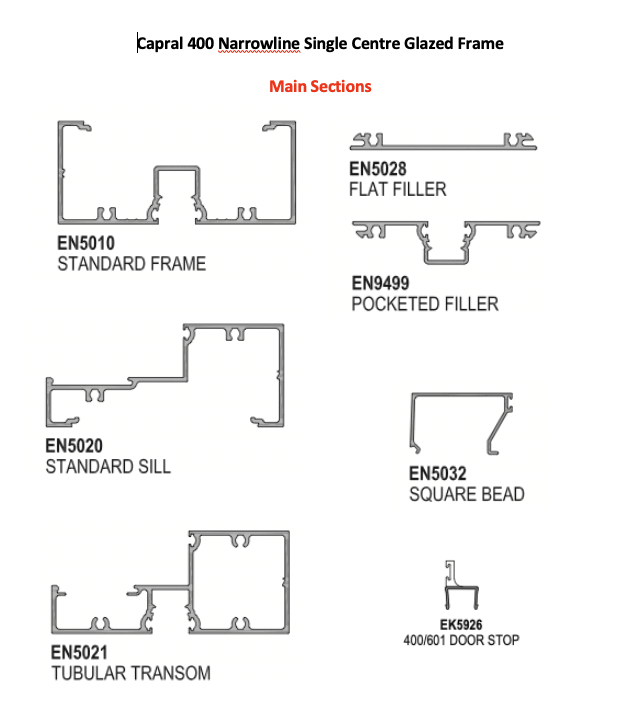

• W3o Capral AGS 400 Narrowline 101.6mm x 25mm – Option 2o Powdercoated Dulux Duraloy black matt 27219319o 6.38mm Clear Laminated Glass• W4o Aluminium Shopfront as per Elevationo Powdercoated Dulux Duratec Zeus Dark Greyo 10.38mm Clear Laminated Glass• W4 Sliding Dooro Make sliding door with track and Assa Abloy automatic system• Door Frameso Door 1 – Sliding Dooro Door 2 – timber by otherso Doors 3-21 aluminium frame Powdercoated Dulux Duralloy Black Matt #27219319 Note, some are part of glazing and some are not• • No glass film allowed for, excluded
Ceilings
• PB Ceilingso 13mm Suspendedo Butt into existing at some sections after demolition works by otherso P50 shadowline• FC Ceiling – entry vestibuleo 9mm FC set and sand• Bulkheadso As Per plan• Bulkhead above Operable Wallo As per detail on the Plan 311 Stud Frame with 2 x 13mm RE + Insulation to both sides 2nd layer on top of ceiling under bulkhead to Wall Track (by others)• Grido Existing Grid to remaino Re-Level Grido Armstrong 600x600 Dune Max W4980S 600x600x20mm Tegularo Lighting plan shows lots of full tile lights and some downlights• Insulationo All Ceilings to have Bradford Gold Batts R3.0 or equilavent• Patchingo Allowed 1 man 8 hours for make good to the job
Walls
• W1o 76mm Studo 2 x 13mm REo 1 x 13mm REo Bradford Acoustiguard 75mm 11kg/m3• W2o 76mm Studo 2 x 13mm SOUNDBOARDo 1 x 13mm SOUNDBOARDo Bradford Acoustiguard 75mm 11kg/m3• W5o 76mm Studo 2 x 13mm SOUNDBOARDo 1 x 9mm VILLABOARD – tile finisho Bradford Acoustiguard 75mm 11kg/m3• Skirtingso 100mm high aluminium skirting black anodised – black infil tape• Plyo 1200mm high plywood strengthening as per floor plan – about 11m2• Standoff Wall – ending to long grazed wallo 200mm wide x 3100mm to ceilingo 2 layers of 18mm MDF sandwiching 3mm wavebar• Hob Wall kitchenetteo 1200mm high, lined one side with CFC and MDF Sill• Entry Versibule (EX.CFC)o Existing Lightweight Wallso Lining to be removed by otherso Bradford Acoustiguard 75mm 11kg/m3o 9mm CFCo 2 x 13mm RE• Entry Versibule (EX.PB)o Existing Lightweight Wallso Lining to be removed by otherso Bradford Acoustiguard 75mm 11kg/m3o 2 x 13mm REo 1 x 13mm RE
Insulation
• Walls - Bradford Acoustiguard 75mm 11kg/m3• Ceilings - Bradford Gold Batts R3.0 or equilavent
Glazed Partitions
• W3o Capral AGS 400 Narrowline 101.6mm x 25mm – Option 2o Powdercoated Dulux Duraloy black matt 27219319o 6.38mm Clear Laminated Glass• W4o Aluminium Shopfront as per Elevationo Powdercoated Dulux Duratec Zeus Dark Greyo 10.38mm Clear Laminated Glass• W4 Sliding Dooro Make sliding door with track and Assa Abloy automatic system• Door Frameso Door 1 – Sliding Dooro Door 2 – timber by otherso Doors 3-21 aluminium frame Powdercoated Dulux Duralloy Black Matt #27219319 Note, some are part of glazing and some are not• • No glass film allowed for, excluded
